FORGED MONOBLOCK
Xolaris Zenith
Angular
- From $5,990 USDset of four, delivered
- Made to order12 to 14 weeks from build spec approval, delivered to your door
- Custom offset machined to your buildconfirmed with you before machining
$6,780 / set of 4
Buy now, pay later with Shop Pay.
Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.
If you finance your purchase with Affirm, your first payment is due approximately two weeks after your purchase is finalized. Please note that due to extended delivery times, your loan payment(s) may be due before you receive your purchase.
Allocated to the next production run.

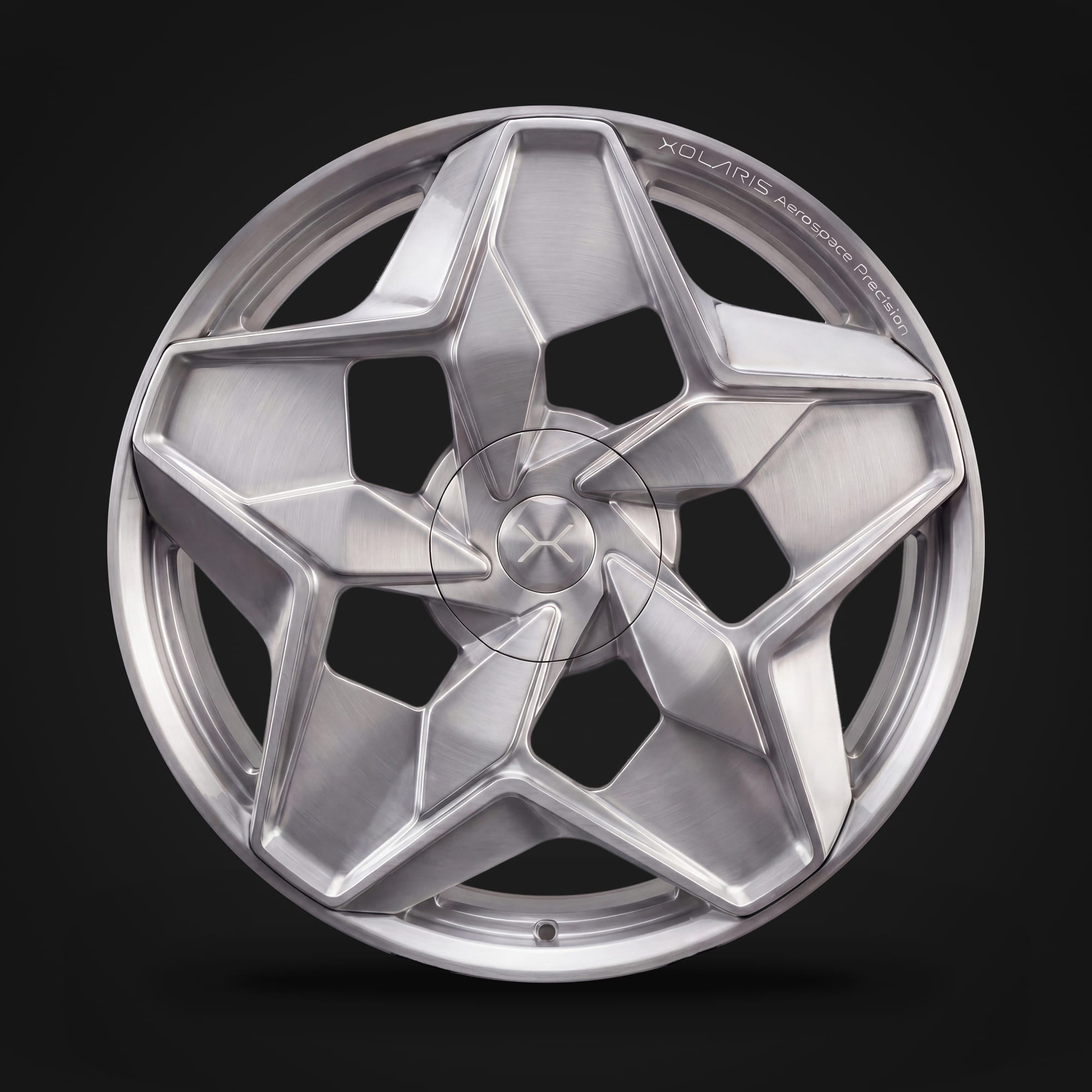

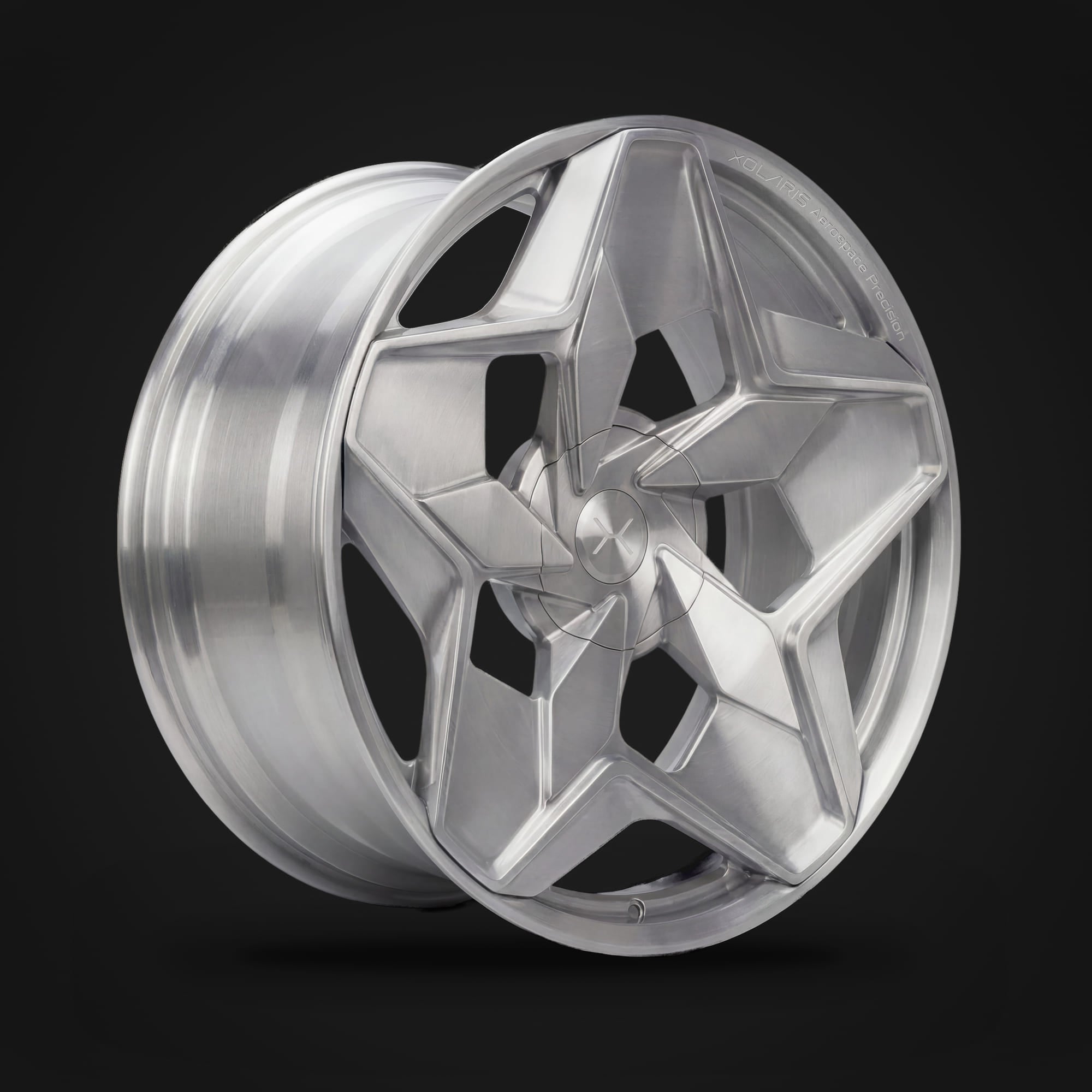

Brushed Aluminum
Want a custom finish? Request a bespoke quote →Every Set Includes
- Four fully forged 6061-T6 monoblocks, laser-etched serials
- Certificate of authenticity
- Delivery, duties and import fees included. Applicable taxes are added at checkout.
- Installation and safety requirements are published at /installation-safety
Secure checkout
Angular spoke geometry designed around the Cybertruck's lines, forged as a single-piece monoblock.
Zenith specifications
One specification covers every Zenith size and finish.
| Fitment | |
|---|---|
| Diameter | 20, 22 or 24 in |
| Width | 24-inch: 24 x 9.5 in standard, offset machined per build. 20 and 22-inch: set in the build spec |
| Offset | Custom, machined per build |
| Bolt pattern | 6 x 139.7 mm |
| Center bore | 84.1 mm, hub-centric |
| Strength | |
| Load rating | 3,600 lb per wheel |
| Construction | Forged 6061-T6 aluminum monoblock |
| Hardware | |
| TPMS | Tesla OEM sensor compatible |
| Lug hardware | M14 x 1.5, 21 mm hex, factory lug nuts |
| Torque | 151 lb-ft, re-torque after the first 50 miles (80 km) |
| Ordering | |

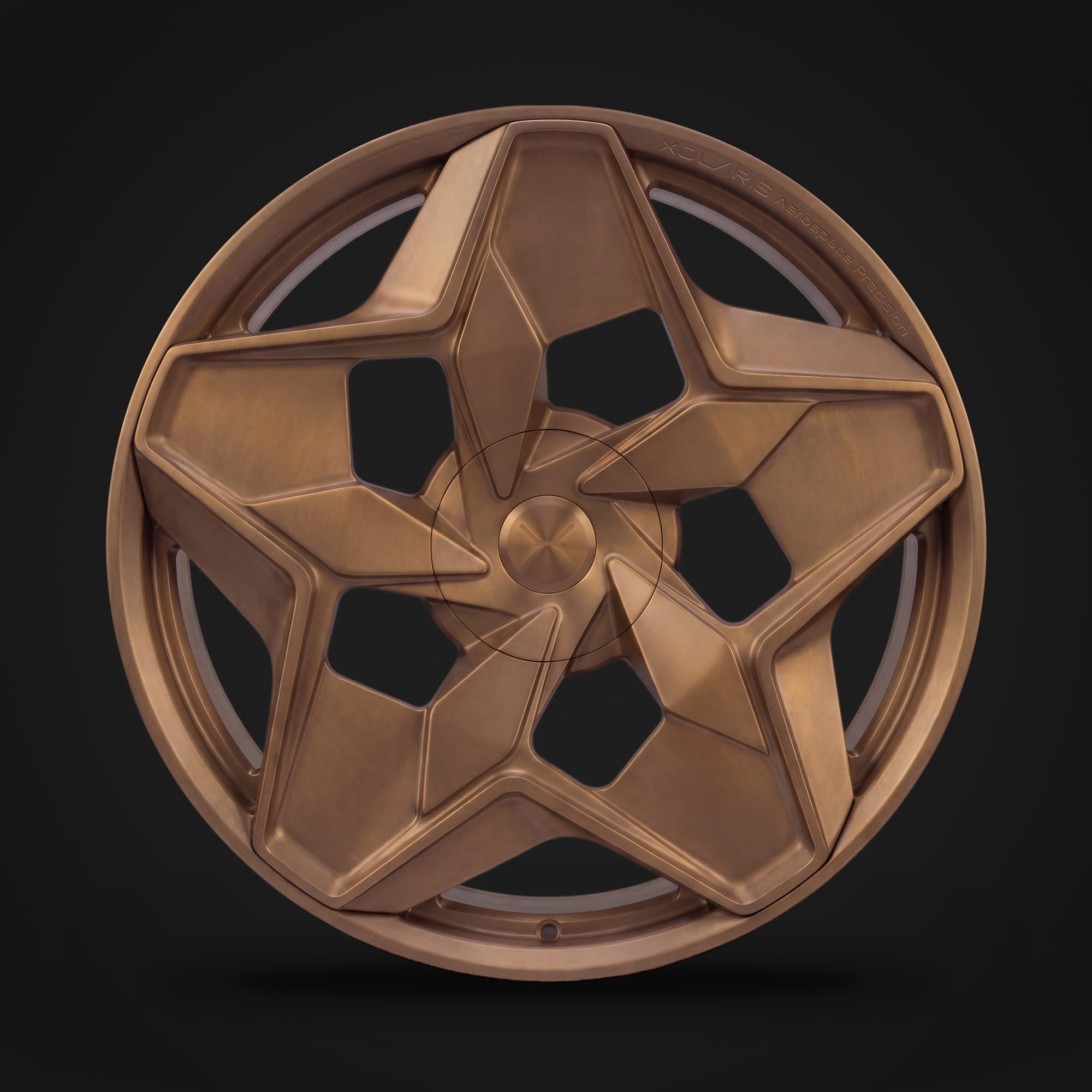

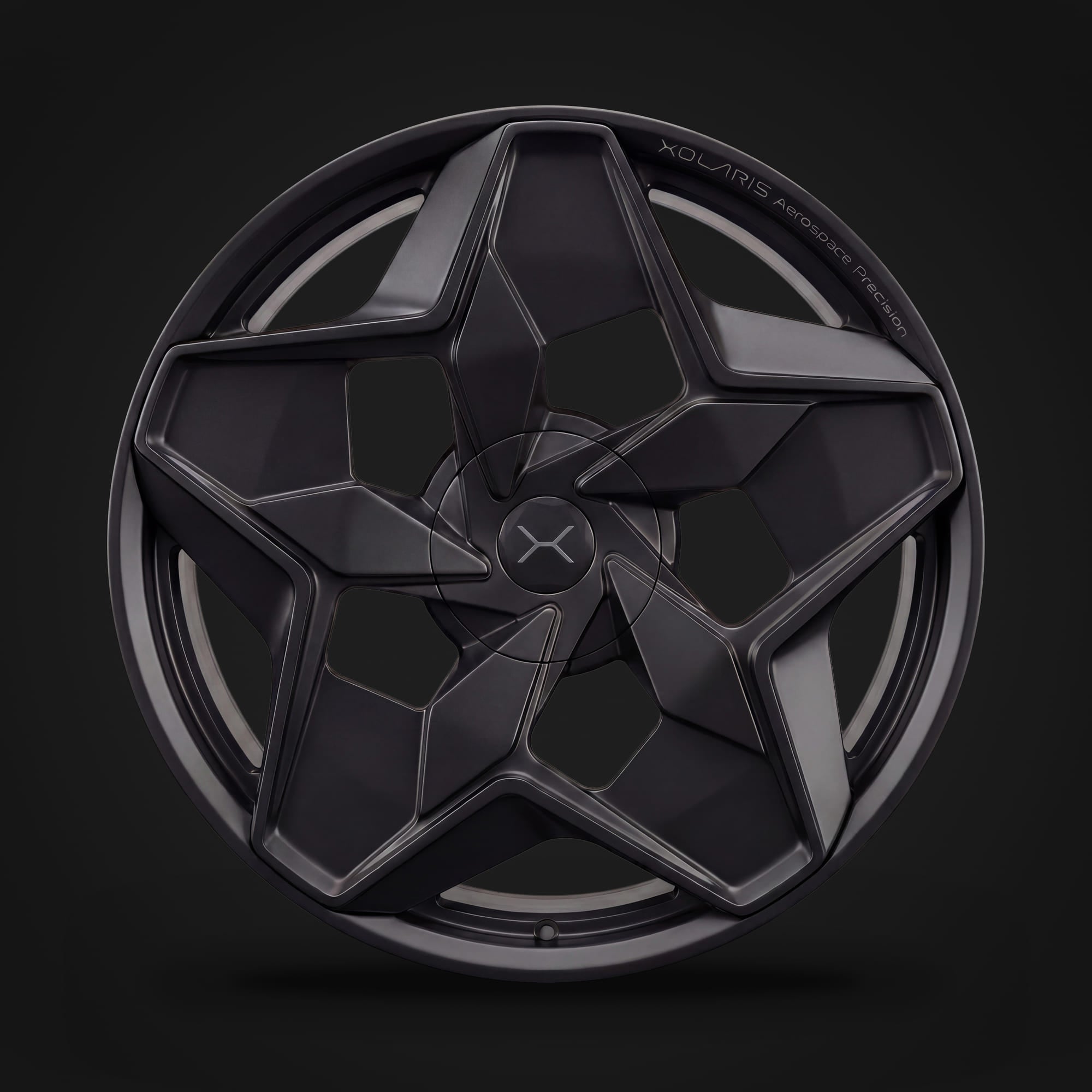

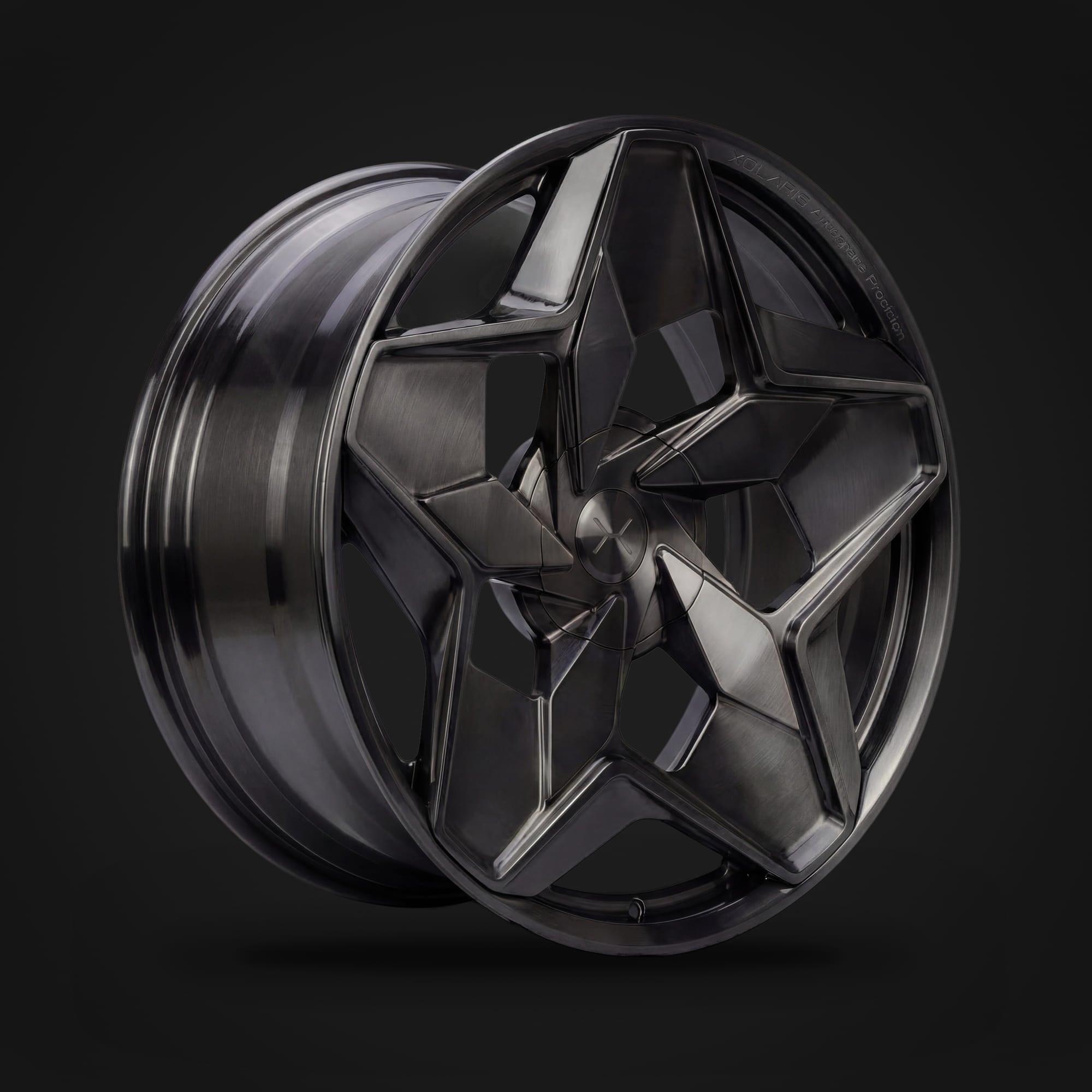

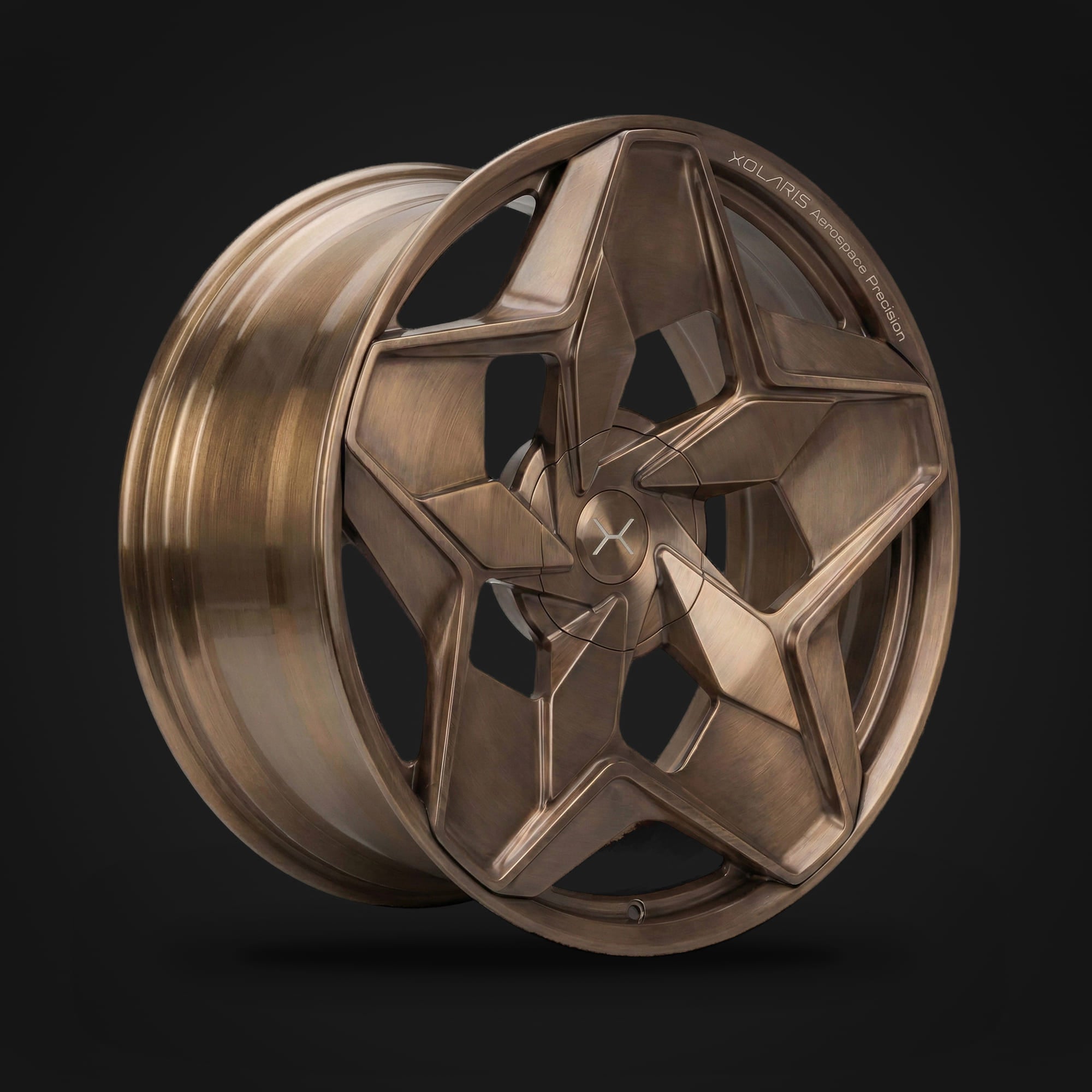

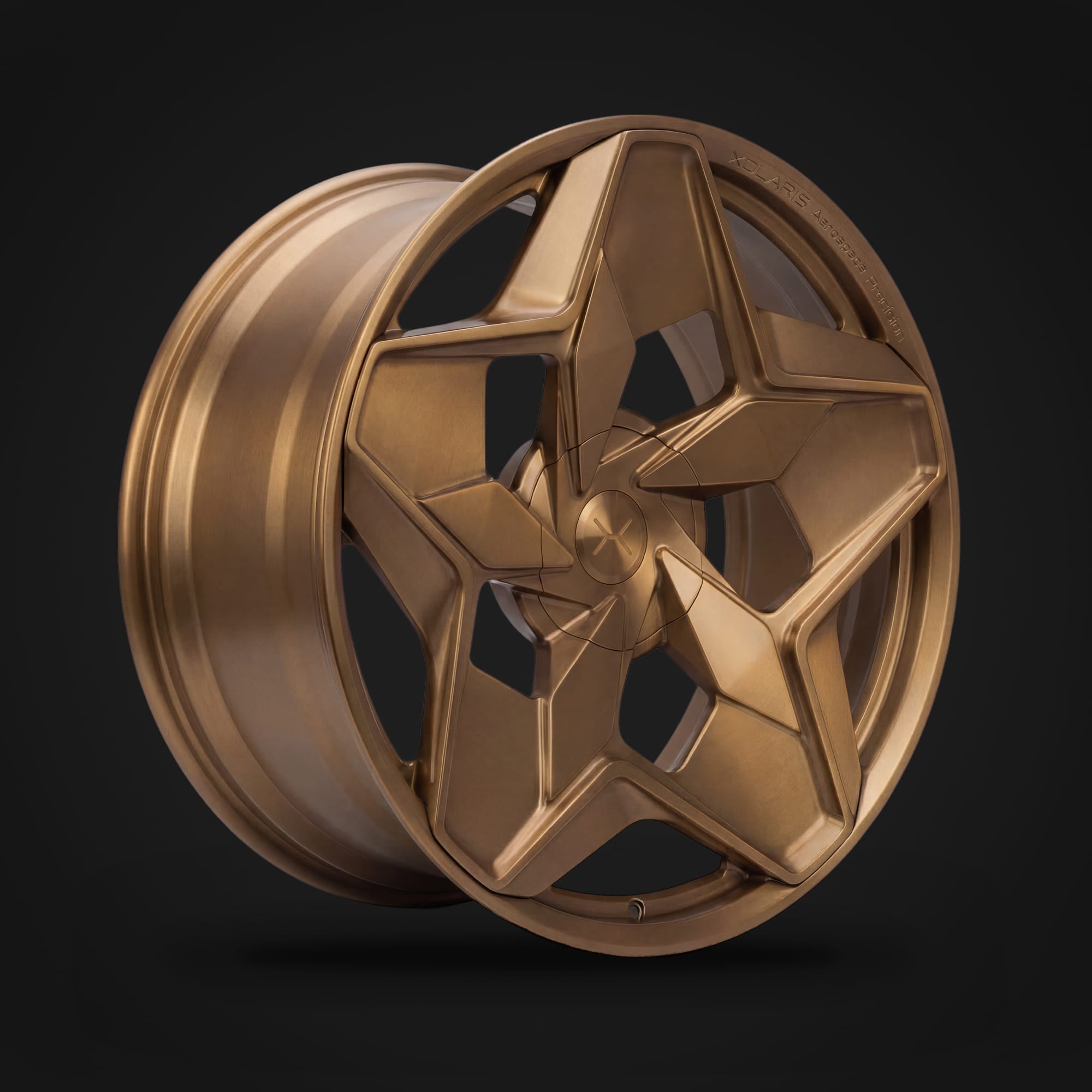

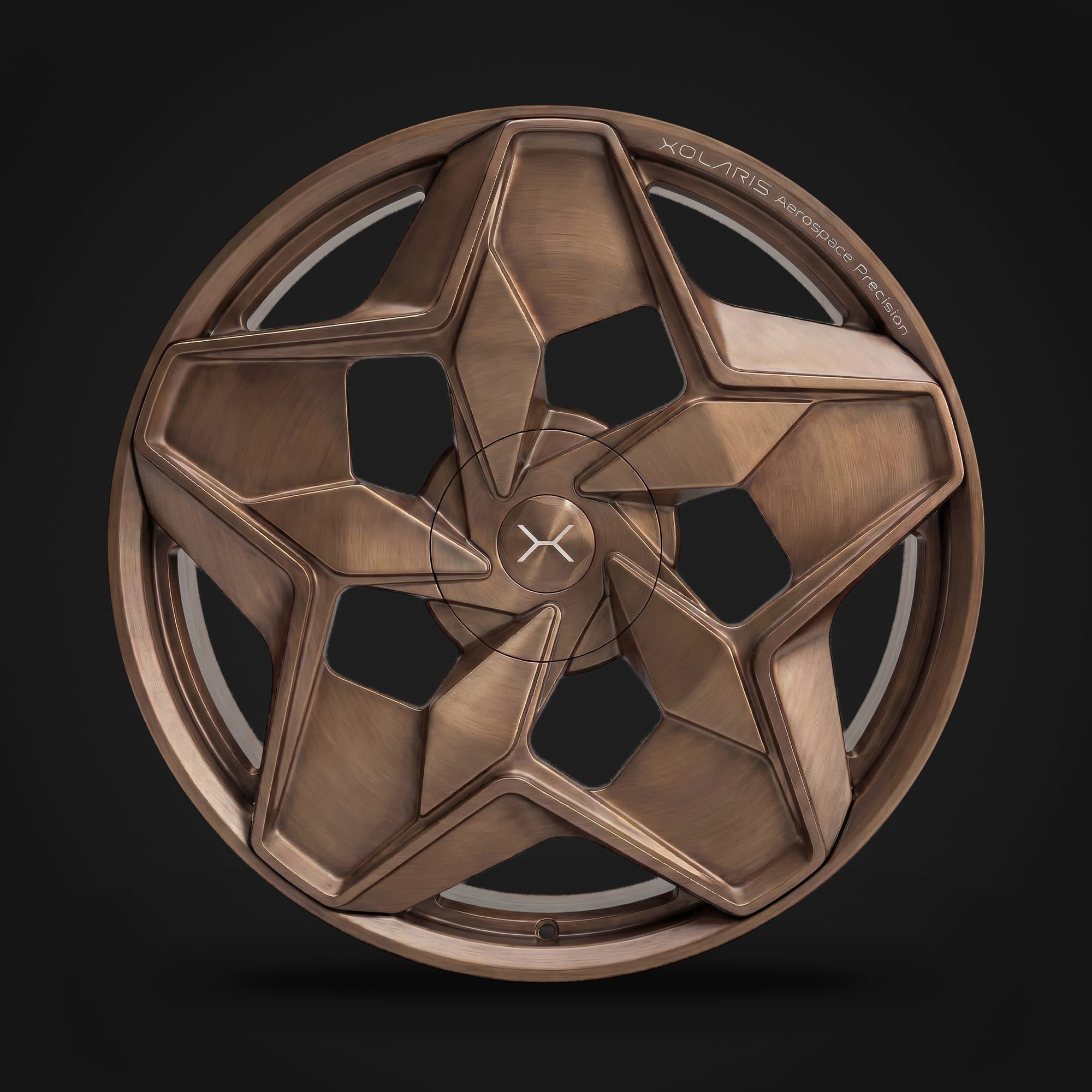

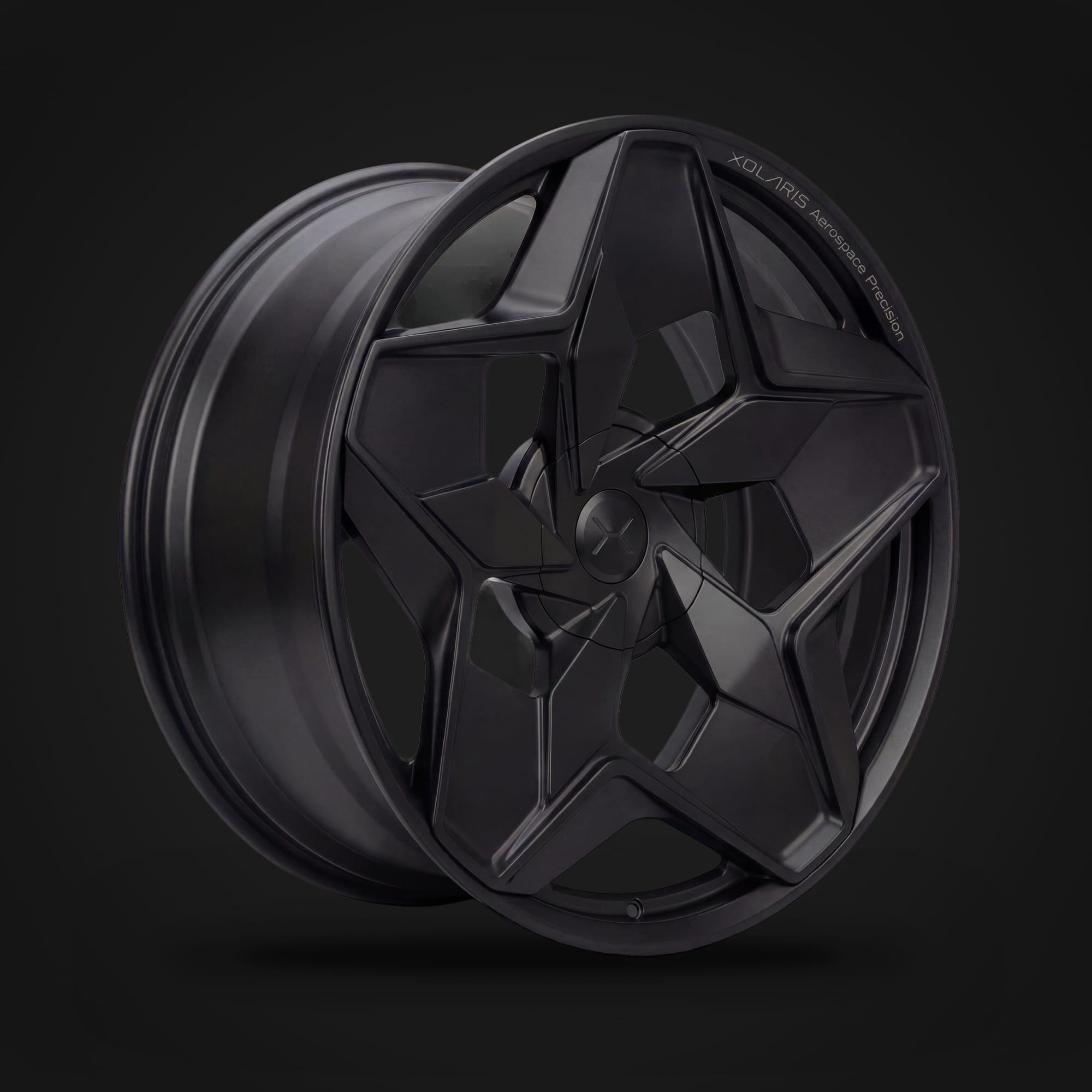

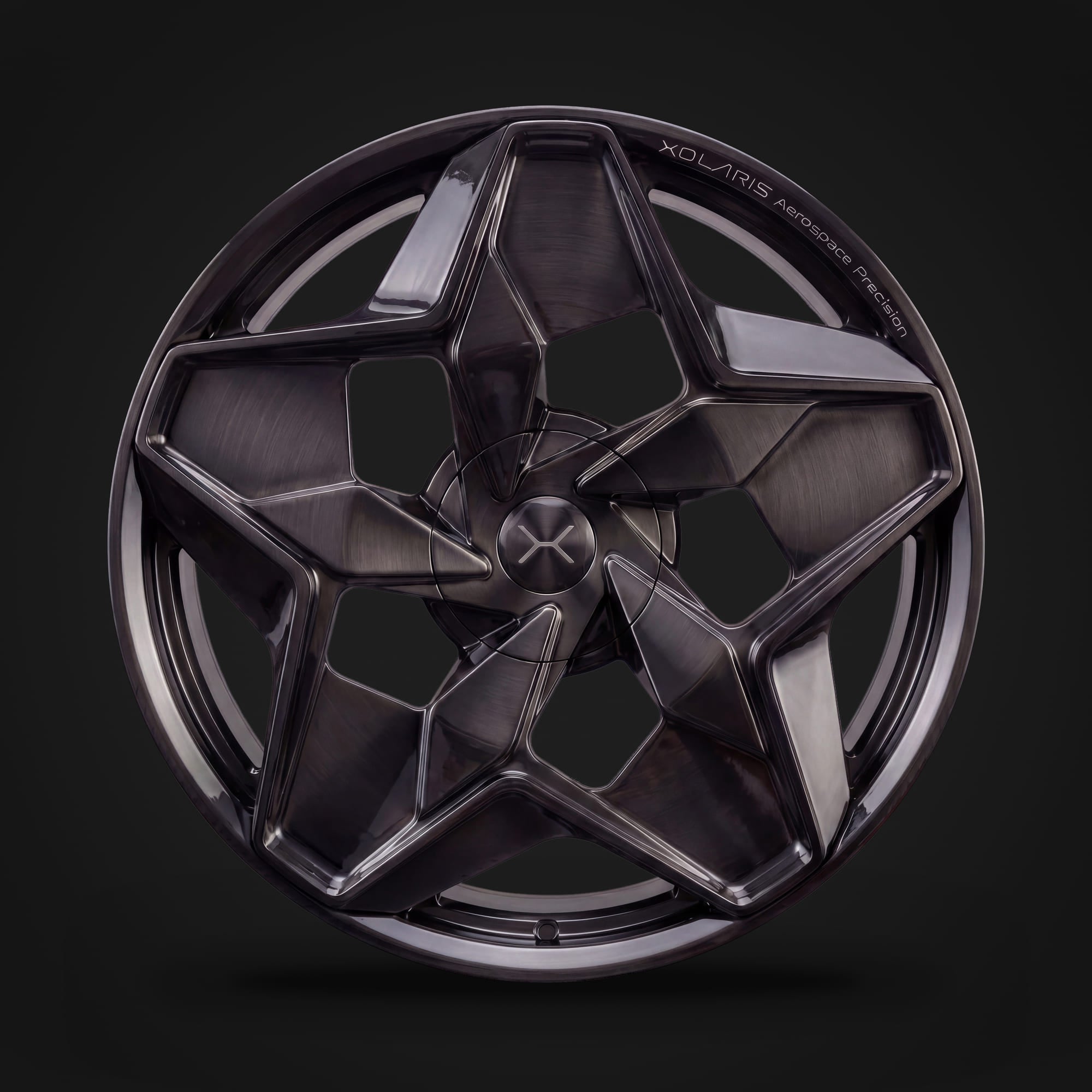

| Finishes | Brushed Titanium, Burnished Bronze, Brushed Aluminum, Satin Obsidian, Brushed Obsidian; custom by quote |
| Lead time | 12 to 14 weeks from build spec approval, delivered to your door |
| Warranty | Limited Lifetime Structural Warranty, original purchaser only, not transferable |
Which tires fit 24-inch Zenith wheels?
A 295/45R24 tire is 34.5 inches tall, the closest of the three to the Cybertruck's stock 285/65R20. 315/45R24 and 35x12.50R24 run +1.6% and +1.2% taller.
| Tire size | Overall diameter (in) | Δ vs OEM 285/65R20 (%) | Section width (mm) | Note |
|---|---|---|---|---|
| 285/65R20 (stock) | 34.6 | 0.0% | 285 | Factory fitment on the 20-inch wheel. |
| 295/45R24 | 34.5 | -0.4% | 295 | Closest to the stock diameter. |
| 315/45R24 | 35.2 | +1.6% | 315 | Wider section. |
| 35x12.50R24 | 35.0 | +1.2% | 317.5 | Nominal flotation sizing; actual diameter varies by model. |
Diameter = rim diameter + 2 × sidewall height, where sidewall = section width × aspect ratio. A mounted tire measures slightly differently by brand and model.
Zenith questions, answered
Whether a 24-inch wheel rubs depends on its offset, not on its diameter alone. Xolaris machines the offset of every Zenith set to your build (ride height, tire size and fender setup), so the wheel sits where there is room. We publish no blanket clearance claim; fit is specified per truck.
The fitment guide works through offset, tire size and ride height with calculated figures. Send your spec through the quote form and we confirm the offset before machining.
Read the fitment guide →Xolaris wheels are bolt-on and fully reversible. Tesla's owner's manual says: “Only use Tesla-approved wheels when installing or swapping wheels. Using non Tesla-approved wheels can cause serious damage. Tesla is not liable for damage caused by using wheels not approved by Tesla.” The FTC says “Your warranty stays in effect if you use aftermarket or recycled parts” and that the manufacturer or dealer “must prove the aftermarket or recycled part caused the damage before they can deny warranty coverage.” This is general information, not legal advice.
Yes. Uses your factory Tesla sensors. The truck relearns them automatically after a short drive, per Tesla's owner's manual. Your tire shop moves the sensors from the stock wheels during fitting; there is nothing extra to buy, and they return to the stock wheels just as easily.
If you plan to keep the stock wheels as a second set, a second set of Tesla-compatible sensors avoids transferring them each season. Check tire pressures after the first cold snap: pressure drops with temperature, and the TPMS warning follows.
The load rating is the static weight each wheel is rated to carry: 3,600 lb per wheel, or 14,400 lb across a set of four. That is above the Cybertruck's gross vehicle weight rating, so a fully loaded truck sits well inside the wheels' rated capacity with margin left over.
Load rating is a per-wheel figure, not a per-set figure. Towing and payload within Tesla's published limits count as normal use under the Limited Lifetime Structural Warranty.
Lead time is 12 to 14 weeks from build spec approval, delivered to your door. Every Zenith set is forged and machined to order. Xolaris manages delivery to your door by tracked courier, and you receive tracking by email once it ships.
Lead times are estimates; custom finishes can add production time. You receive a production timeline by email once the order is placed.
Delivery is included in the price to Canada and the contiguous United States (48 states plus DC). Xolaris manages delivery to your door by tracked courier. Delivery, duties and import fees included. Applicable taxes are added at checkout. You receive a tracking number and an estimated delivery window by email.
We need a street address, couriers do not deliver to P.O. boxes. Alaska, Hawaii and US territories are quote-only, as is every destination outside Canada and the contiguous United States, and is priced before you order.
Only on the 20-inch size. The Cybertruck's stock 285/65R20 tires fit a 20-inch Zenith wheel directly; the 22-inch and 24-inch wheels need tires in those diameters. The recommended 24-inch sizes above keep the overall diameter within 2% of stock, calculated from nominal dimensions.
Keeping the overall diameter close to stock keeps the speedometer and ride height close to factory. A professional tire shop mounts and balances the new tires and transfers the TPMS sensors.
Every Zenith wheel carries a Limited Lifetime Structural Warranty for its original purchaser: if a wheel cracks or fractures because of a defect in materials or manufacturing under normal use, Xolaris replaces it for as long as you own the wheels. Impact damage from potholes, curbs and debris and damage from improper installation are not covered.
The warranty is not transferable, and there is no separate registration step: coverage is tied to your order record and the serial etched into each wheel. The finish, cosmetic wear and wheels modified or repaired by anyone else are also excluded; full terms are on the warranty page.
Read the Limited Lifetime Structural Warranty →24-inch wheels can reduce a Cybertruck's range. Larger wheels and tires add rotating mass, which can lower efficiency, and how much depends on the tires you choose and how you drive. Xolaris has no measured range figures, so we do not quote one. The tire table on this page lists the sizes closest to the stock diameter.
Every Xolaris Zenith wheel is a forged 6061-T6 aluminum monoblock, machined from a single block, FEA validated and rated to 3,600 lb per wheel. Each order is machined one-of-one, and the customer receives build photos at every stage of production, so the process is documented for that specific set.
The forging, machining and validation process is described on the engineering page.
See the engineering process →Why forged matters for Cybertruck
3,600 LB Load Rating
A Cyberbeast weighs 6,863 lb (with All Season tires). Ours are rated at 3,600 lb per wheel, 37% above the Cybertruck’s highest per-wheel axle rating of 2,624 lb (Tesla owner’s manual).
Hub-Centric Fit
CT-specific center bore. No adapter rings.
