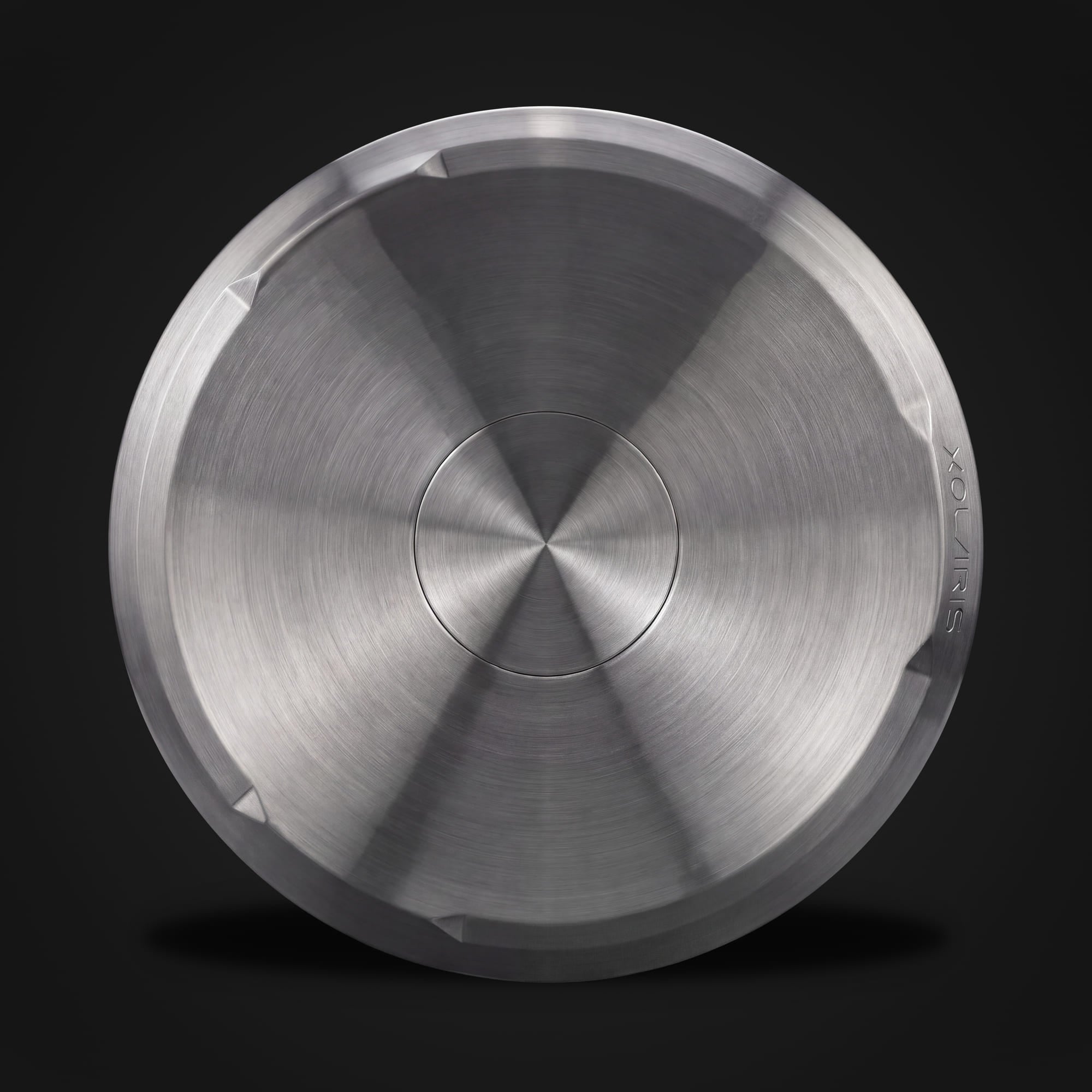

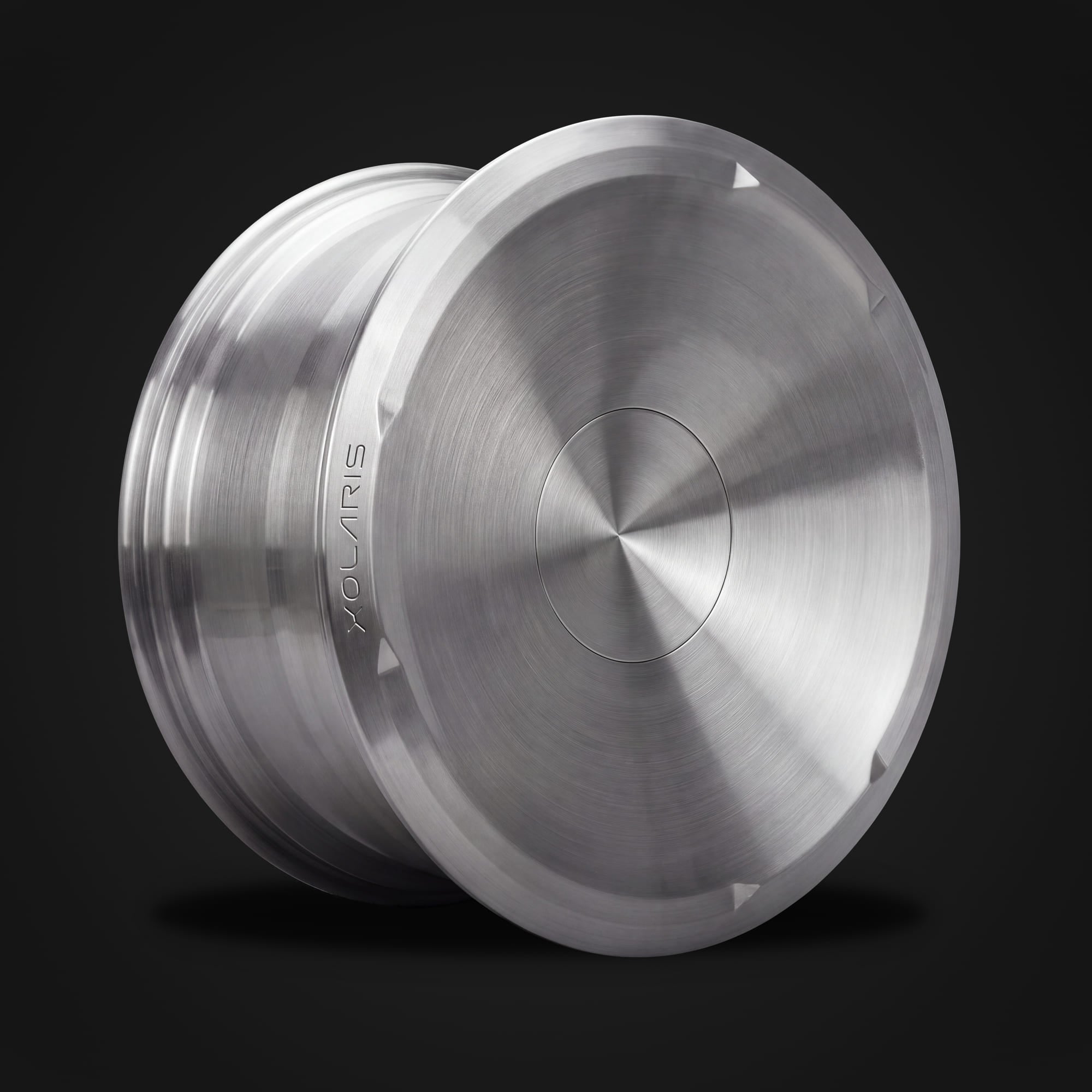

Xolaris Umbra in Brushed Aluminum

FORGED MONOBLOCK

Xolaris Umbra

Concave monodisc

  • From $5,990 USDset of four, delivered
  • Made to order12 to 14 weeks from build spec approval, delivered to your door
  • Custom offset machined to your buildconfirmed with you before machining
Request a fitment quote →

$6,780 / set of 4

Buy now, pay later with Shop Pay.

Rates from 0-36% APR. Payment options through Shop Pay Installments are subject to an eligibility check and are provided by these lending partners: affirm.com/lenders. Options depend on your purchase amount, and a down payment may be required. State notices to consumers: affirm.com/licenses.

If you finance your purchase with Affirm, your first payment is due approximately two weeks after your purchase is finalized. Please note that due to extended delivery times, your loan payment(s) may be due before you receive your purchase.

Allocated to the next production run.

Message us on Instagram →

Every Set Includes

  • Four fully forged 6061-T6 monoblocks, laser-etched serials
  • Certificate of authenticity
  • Delivery, duties and import fees included. Applicable taxes are added at checkout.
  • Installation and safety requirements are published at /installation-safety

Secure checkout

Visa
Mastercard
American Express
Discover
Diners Club
Apple Pay
Google Pay
Shop Pay
Secured by Shopify

Concave monodisc face with minimalist geometry, forged as a single-piece monoblock for the Tesla Cybertruck.

Umbra specifications

One specification covers every Umbra size and finish.

Umbra specifications: all sizes and finishes.
Fitment
Diameter20, 22 or 24 in
Width24-inch: 24 x 9.5 in standard, offset machined per build. 20 and 22-inch: set in the build spec
OffsetCustom, machined per build
Bolt pattern6 x 139.7 mm
Center bore84.1 mm, hub-centric
Strength
Load rating3,600 lb per wheel
ConstructionForged 6061-T6 aluminum monoblock
Hardware
TPMSTesla OEM sensor compatible
Lug hardwareM14 x 1.5, 21 mm hex, factory lug nuts
Torque151 lb-ft, re-torque after the first 50 miles (80 km)
Ordering

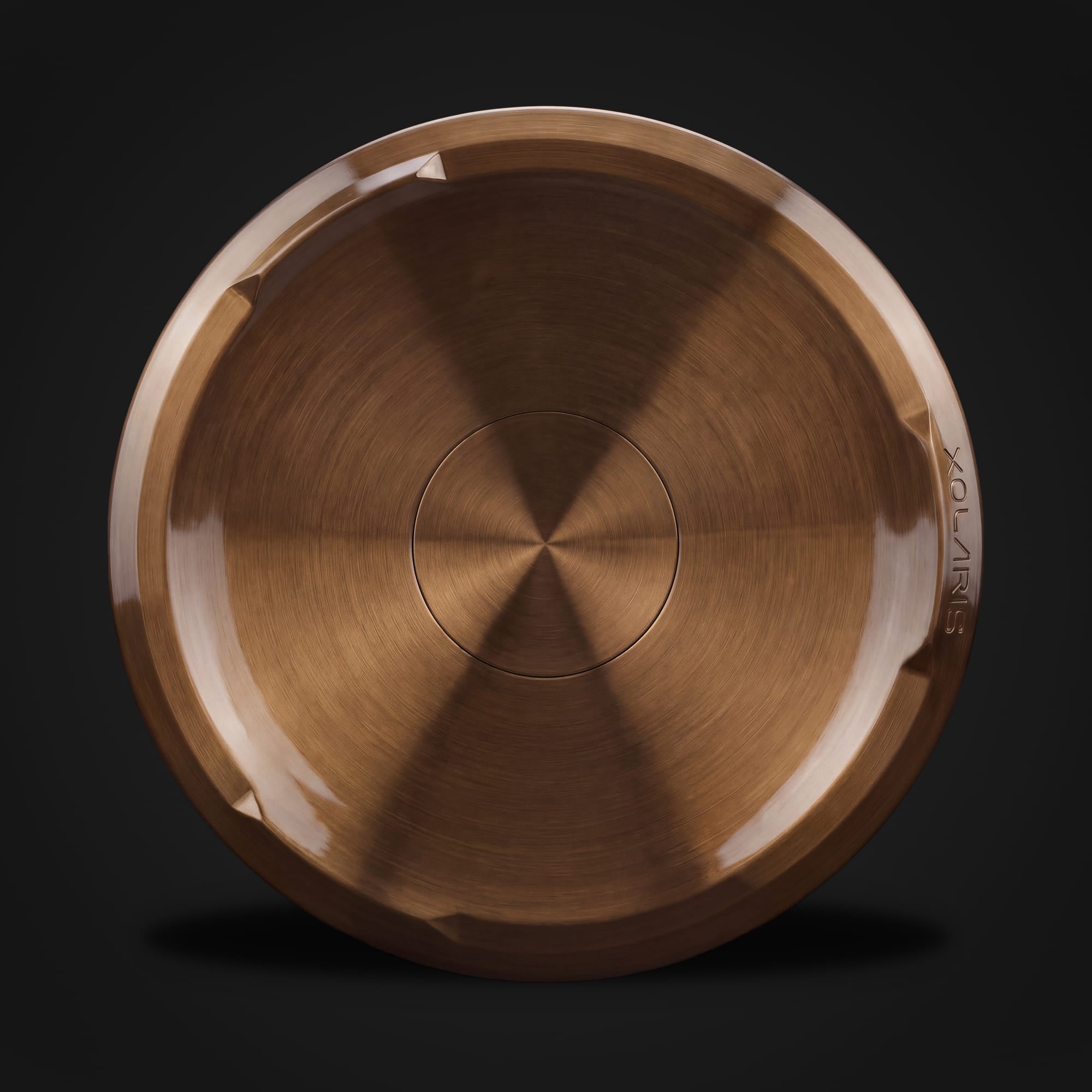

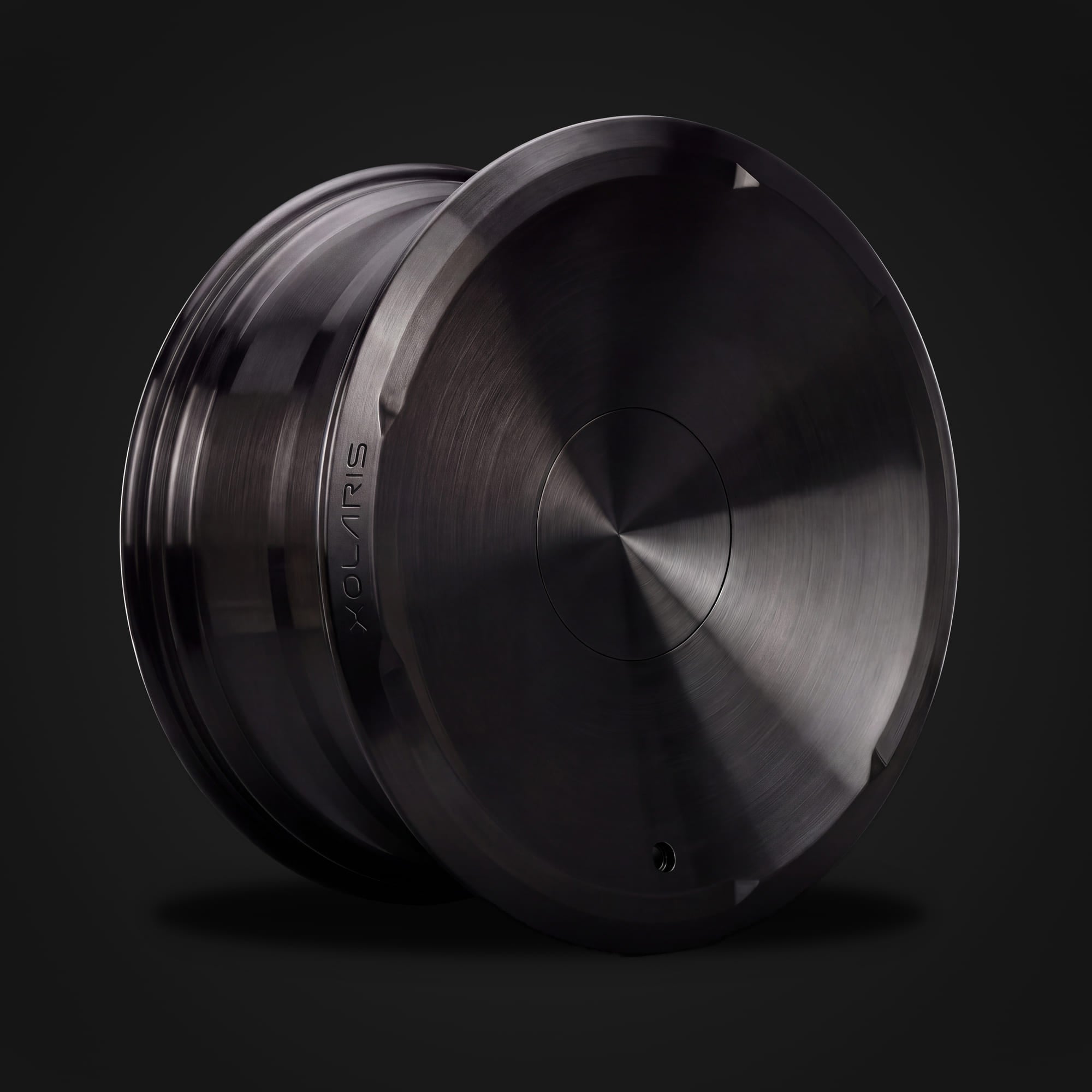

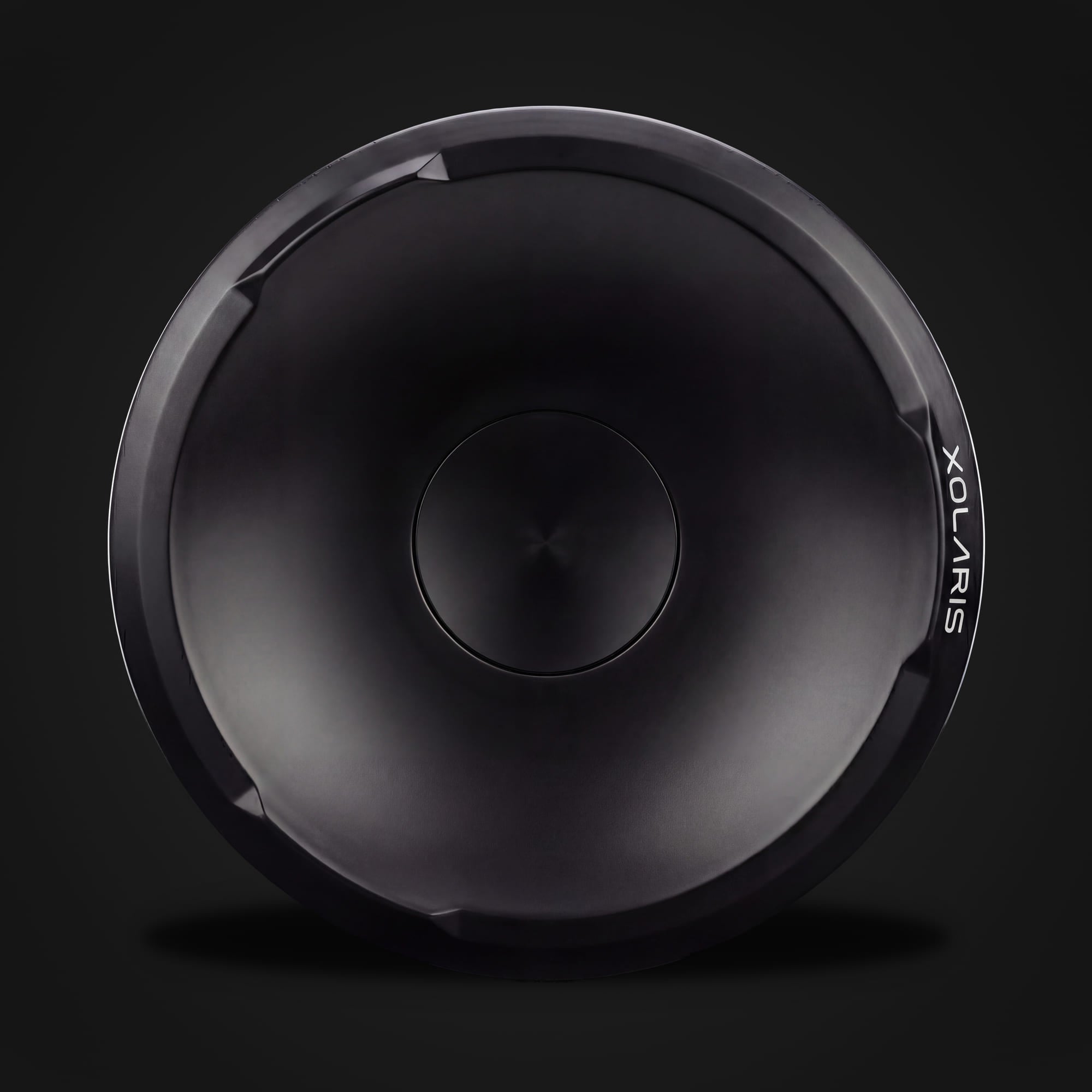

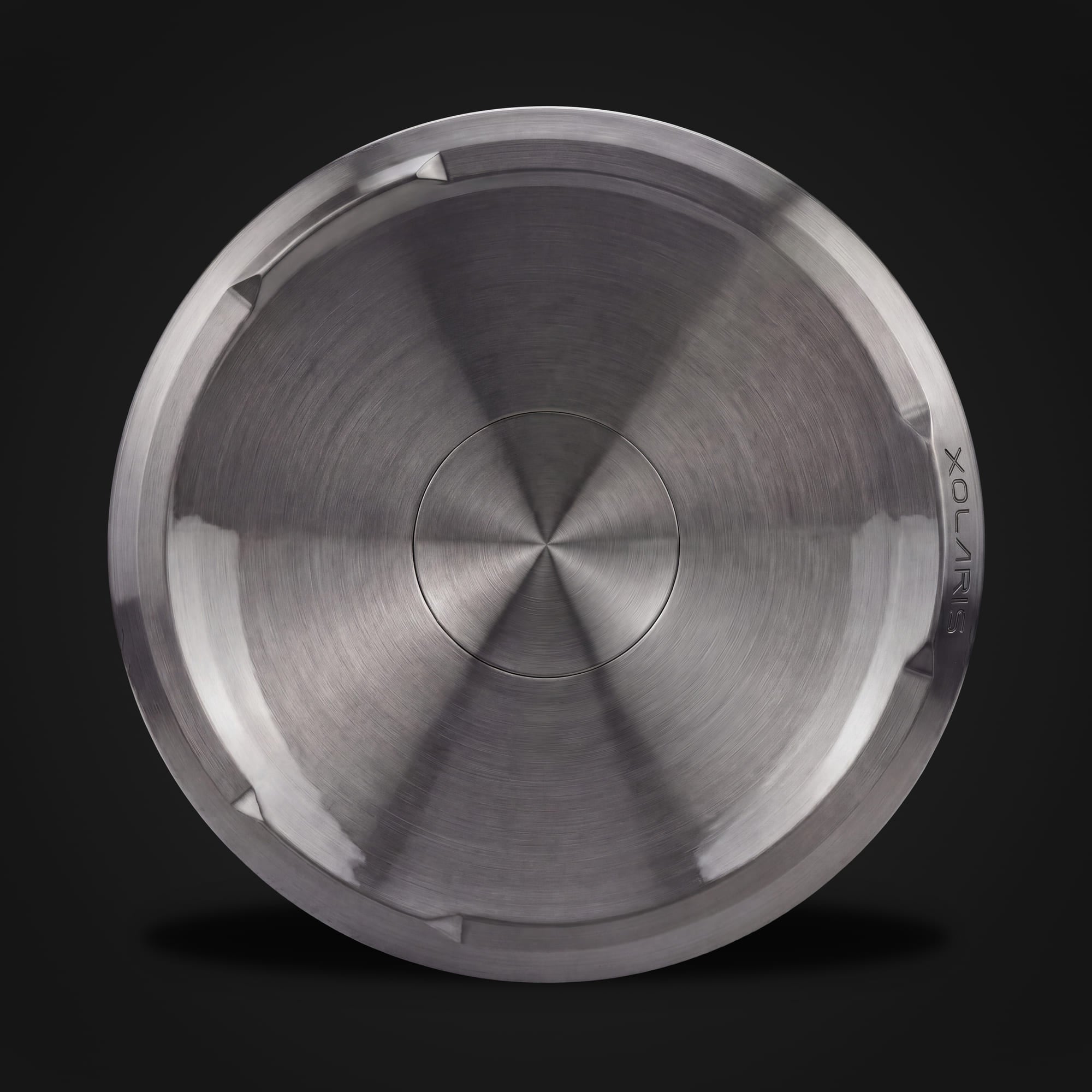

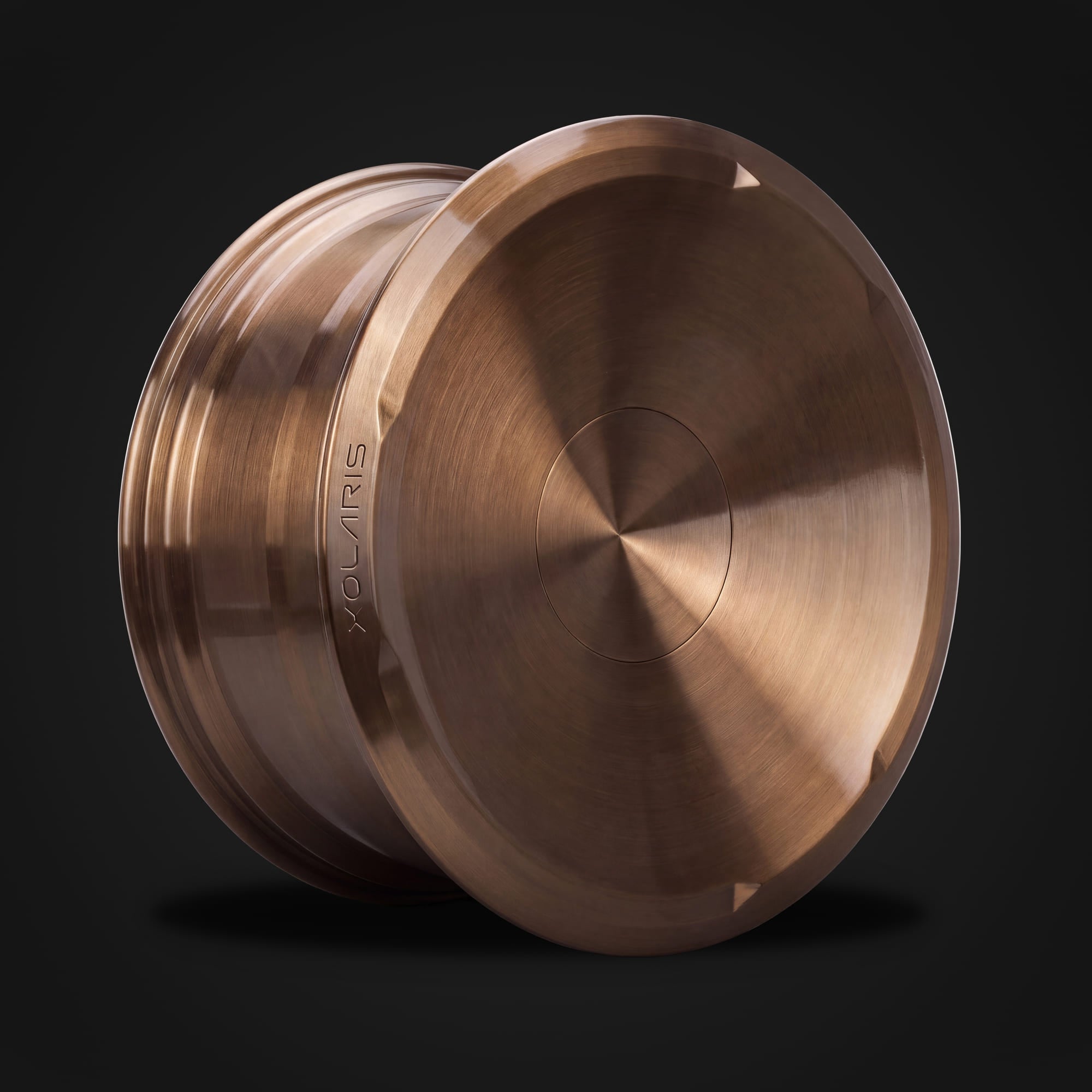

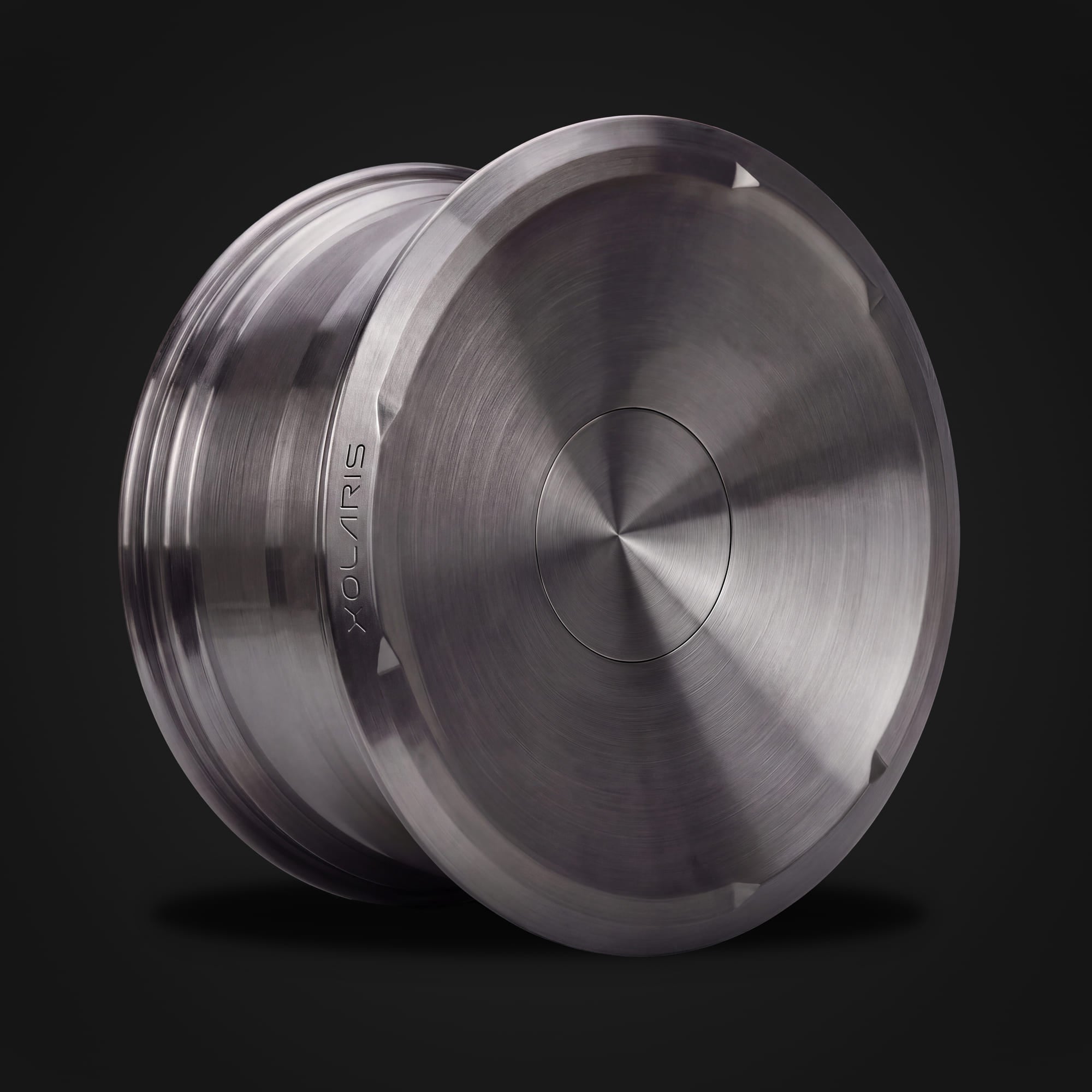

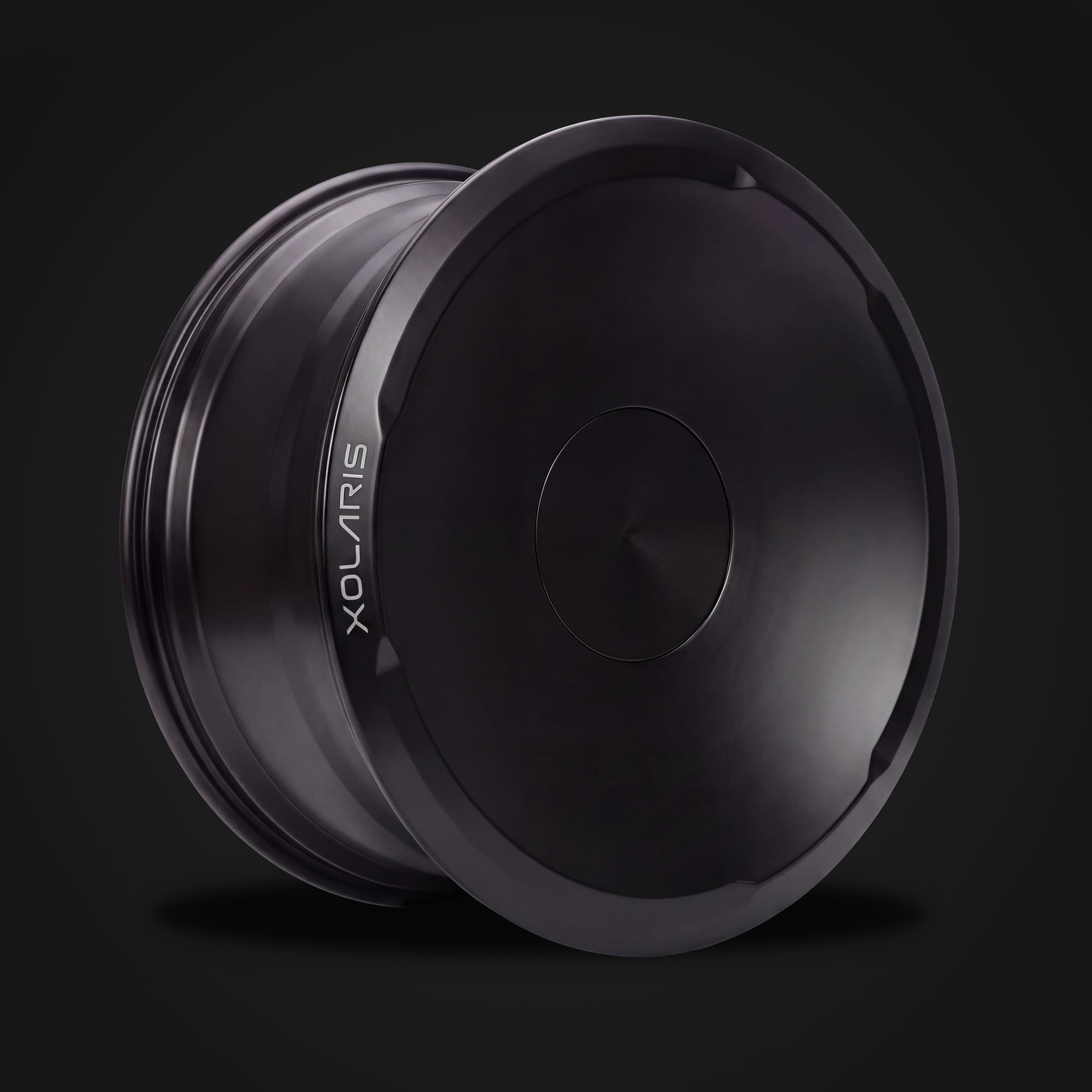

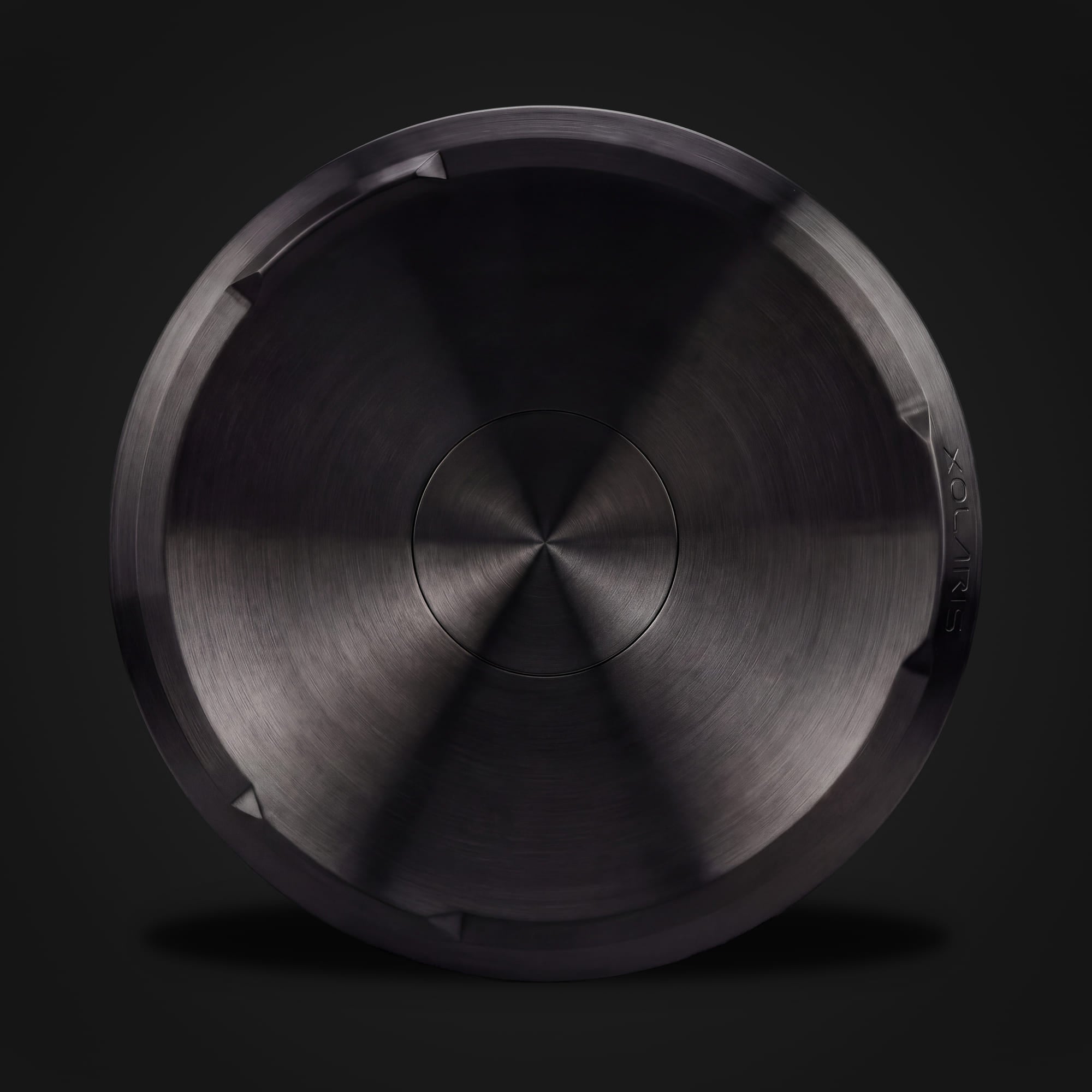

FinishesBrushed Titanium, Burnished Bronze, Brushed Aluminum, Satin Obsidian, Brushed Obsidian; custom by quote
Lead time12 to 14 weeks from build spec approval, delivered to your door
WarrantyLimited Lifetime Structural Warranty, original purchaser only, not transferable

Which tires fit 24-inch Umbra wheels?

A 295/45R24 tire is 34.5 inches tall, the closest of the three to the Cybertruck's stock 285/65R20. 315/45R24 and 35x12.50R24 run +1.6% and +1.2% taller.

Recommended 24-inch tire sizes, calculated from nominal dimensions against the stock 285/65R20.
Tire sizeOverall diameter (in)Δ vs OEM 285/65R20 (%)Section width (mm)Note
285/65R20 (stock)34.60.0%285Factory fitment on the 20-inch wheel.
295/45R2434.5-0.4%295Closest to the stock diameter.
315/45R2435.2+1.6%315Wider section.
35x12.50R2435.0+1.2%317.5Nominal flotation sizing; actual diameter varies by model.

Diameter = rim diameter + 2 × sidewall height, where sidewall = section width × aspect ratio. A mounted tire measures slightly differently by brand and model.

Umbra questions, answered

Whether a 24-inch wheel rubs depends on its offset, not on its diameter alone. Xolaris machines the offset of every Umbra set to your build (ride height, tire size and fender setup), so the wheel sits where there is room. We publish no blanket clearance claim; fit is specified per truck.

The fitment guide works through offset, tire size and ride height with calculated figures. Send your spec through the quote form and we confirm the offset before machining.

Read the fitment guide →

Why forged matters for Cybertruck

3,600 LB Load Rating

A Cyberbeast weighs 6,863 lb (with All Season tires). Ours are rated at 3,600 lb per wheel, 37% above the Cybertruck’s highest per-wheel axle rating of 2,624 lb (Tesla owner’s manual).

Hub-Centric Fit

CT-specific center bore. No adapter rings.
